BMW E89 Z4: maintenance log

The N54 in this car has two well-documented weak points that have nothing to do with mileage: the oil filter housing gasket hardens and leaks, and the charge pipe between the turbos and the throttle body is plastic and splits under boost. Both were done, along with the ordinary wear.

The question

With the charge pipe and the factory diverter changed, does boost behave, and does anything come back in the codes?

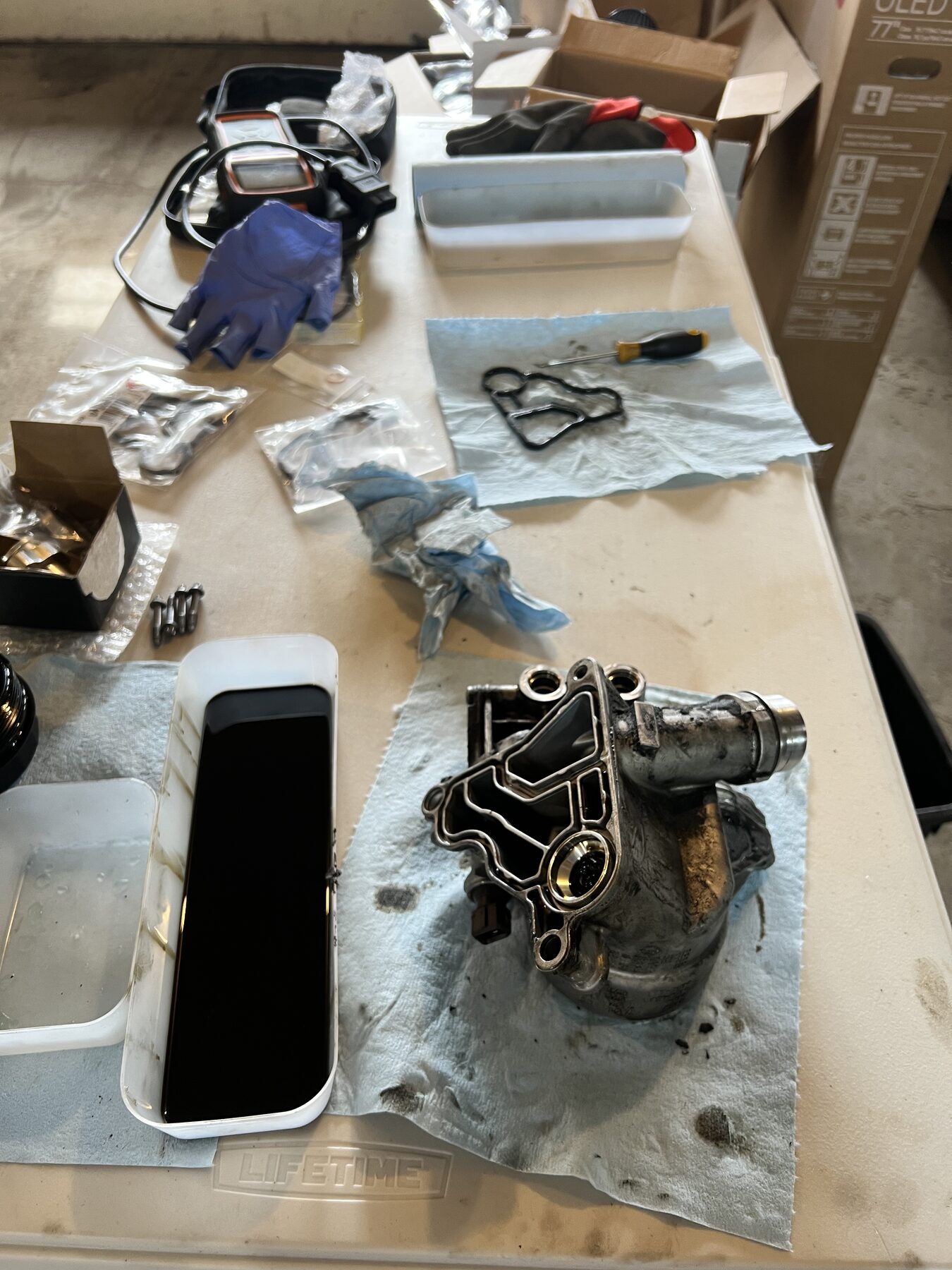

Oil filter housing pulled off the engine, on a fold-out workbench surrounded by gloves, gaskets and tools. — The oil filter housing, in the order it came apart. The third frame is the finding: the gasket had gone hard and was separating, which is why the leak was getting worse.

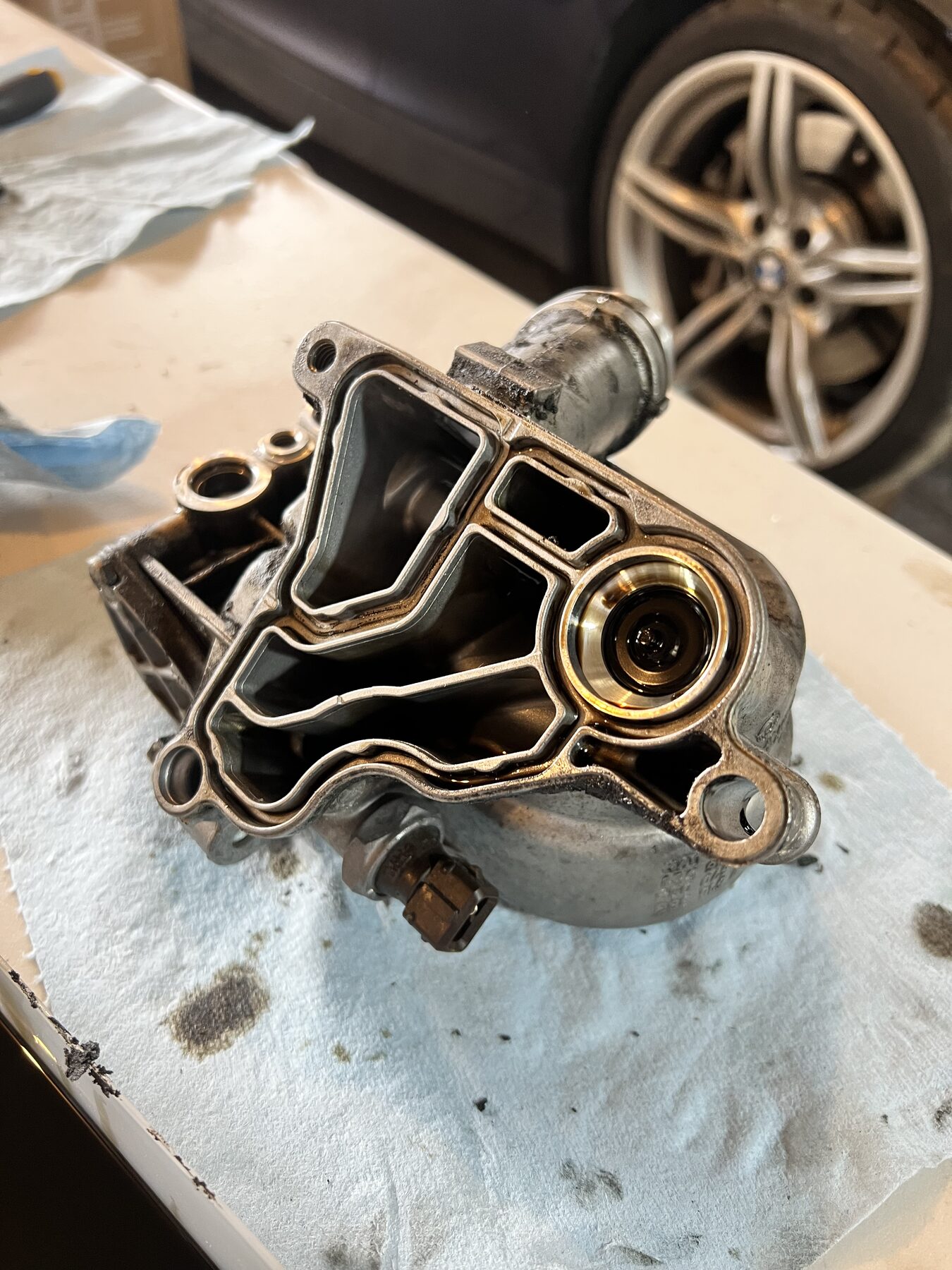

Cleaned underside of the housing, oil galleries visible, Z4 wheel in the background. — The oil filter housing, in the order it came apart. The third frame is the finding: the gasket had gone hard and was separating, which is why the leak was getting worse.

Wear, replaced

Ignition coils and plugs as a full set, because a mixed-age ignition makes the next diagnosis worthless. Catalyst downpipes, replaced as a pair.

Known failures, replaced

The oil filter housing gasket, torqued to spec, with the old one photographed above. And the charge pipe, which on this engine is a plastic part carrying boost and is the part that splits: an aluminium replacement went in.

A change, not a repair

The factory diverter valve came off and a TiAL blow-off valve went in its place. That is not maintenance. A diverter recirculates; a blow-off vents, and the two do different things to the pressure the turbos see when the throttle closes. Whether the engine is happy with it is a question about this car after this change.

What it does not settle

Boost behaviour has not been verified. No log has been taken with the new charge pipe and the TiAL fitted, and no post-install scan has been run, so nothing here says the combination is good. It says what was installed.

All of it was done with hand tools and no lift. Torque specs were followed; nothing was measured afterwards to confirm they held.

Where it stands: Gasket, coils, downpipes, charge pipe and diverter are done. Boost behaviour is not verified.
Next: Verify boost behaviour with the new charge pipe + TiAL setup; check for any post-install codes.
Tools: E89 Z4 · hand tools
